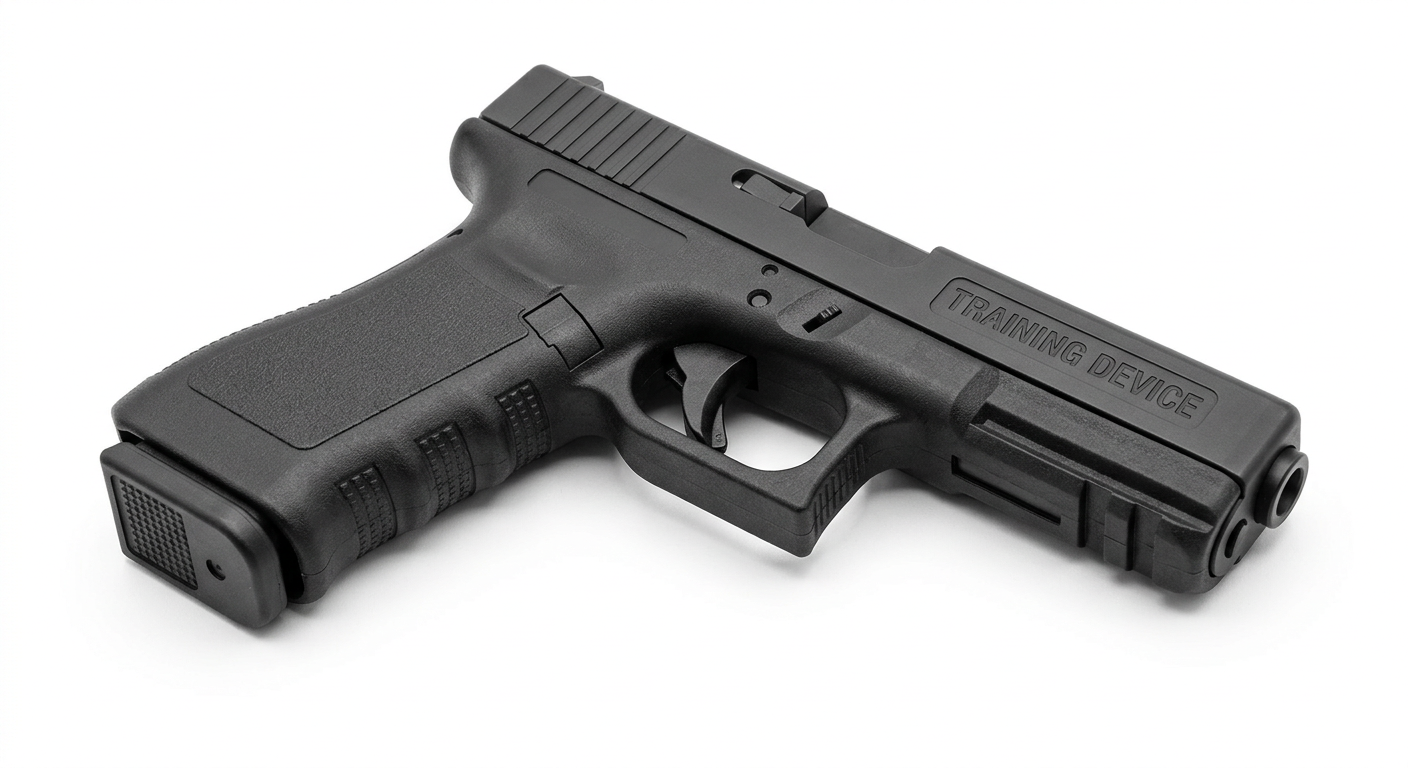

ReCOIL Pro — The World's First True-Recoil Training Pistol

Recoil Anticipation Is the #1 Accuracy Killer

Can ONLY be trained with actual recoil — no shortcut exists

Current trainers: 0% recoil (SIRT, laser) or ~50% max (CoolFire — requires real gun)

CoolFire, Dvorak, VirTra all require a real firearm host

In Japan, UK, Australia — real guns are ILLEGAL for home training

200M+ people in regulated countries have ZERO recoil training options

Train Real. Anywhere.

Adjustable 60-100% real 9mm recoil
3 mechanical settings (Low / Medium / Full)

Full Glock 17 replica controls
Trigger, mag release, slide lock, Picatinny rail

Drop-free 17-round magazine
Shot counter locks slide on empty — realistic reload drills

< 40 dB through apartment walls
Quieter than conversation on Full setting

No projectile. Muzzle permanently sealed.

How It Works

Patented Gas Recoil System

CO2 Gas Reservoir

25cc integrated in slide. 850 PSI operating pressure. 22-36 shots per fill depending on recoil setting. Standard paintball adapter refill.

400g Steel Reciprocating Mass

Internal steel bolt rides on guide rails inside fixed polymer shell. External slide stays still (Japan legal). Internal mass delivers real 9mm impulse.

4-Layer Sound Suppression

Expansion chamber + Progressive-release gas valve + Exhaust baffles + Rubber buffer. Result: <70 dB at source, <40 dB through walls.

Internal Design

How the Recoil System Functions

Exploded view — Yellow: Gas Reservoir | Red: Reciprocating Mass | Green: Piston & Return Spring

Firing Cycle (Step by Step)

1.Trigger pull actuates the gas valve linkage (replicates Glock striker-fired feel — 5.5 lb pull, take-up/wall/break)
2.Progressive gas valve opens over 15-20ms (not snap-open — this shapes the impulse curve and reduces peak noise)
3.CO2 expands from 25cc reservoir (850 PSI) through the expansion chamber
4.Gas drives the piston which pushes the 400g steel reciprocating mass rearward at ~5-8 m/s
5.RECOIL IMPULSE DELIVERED — 3.28 N·s matching real 9mm (mass hits polyurethane rear buffer, no metal-on-metal)
6.Dual captive return spring returns mass forward (~0.05 sec cycle, matches Glock slide return speed)
7.Trigger resets (driven by mass return, same as real Glock slide cycling)
8.Spent CO2 exhausts through 4 baffles → small downward-facing ports (away from shooter's ears)

Key Innovation #1: Fixed Shell / Moving Mass

External polymer slide NEVER moves. The 400g steel mass reciprocates INSIDE the fixed shell. This is why it's Japan-legal (polymer exterior) while delivering real recoil (internal steel).

Key Innovation #2: Progressive Gas Valve

Unlike competitors that use snap-open valves (needed to propel BBs), ReCOIL Pro's valve opens gradually over 15-20ms. Same total impulse, but peak sound is dramatically lower. Patent candidate.

Key Innovation #3: Adjustable Regulator

Rotary dial on frame restricts gas flow. Low = 60% recoil (~58 dB, 36 shots). Medium = 80% (~64 dB). Full = 100% of real 9mm (~70 dB, 22 shots). No electronics.

Component Specifications

Gas Reservoir	25cc steel liner, CO2 at 850 PSI, standard paintball adapter refill
Reciprocating Mass	350-450g steel or tungsten alloy on precision guide rails
Piston	Steel, 14mm diameter, sealed with replaceable O-rings
Return Spring	Dual captive, progressive rate (soft initial → firm compression)
Gas Valve	Progressive-release, tapered orifice, 15-20ms open time
Sound System	Expansion chamber (5-8cc) + 4x stainless steel cone baffles
Trigger	Striker-fired, 5.5 lb pull, 12.5mm travel, blade safety
Frame	Glass-filled nylon, Glock 17 Gen5 dimensions, Picatinny rail
Magazine	17rd shot counter, 363g (matches loaded G17 mag), drop-rated 1000+ on concrete
Total Weight	~875g (equivalent to loaded Glock 17 with 17+1 rounds)
Muzzle	Permanently blocked — solid steel plug, nothing can exit

Nothing Comes Close

Feature	ReCOIL Pro	CoolFire ($390)	SIRT ($189-439)	Laser Ammo ($460+)	Airsoft GBB
Recoil	60-100% Adjustable	~50%	0%	~30-40%	~5-15%
Standalone	YES	NO (needs real gun)	YES	YES	YES
Reload Drills	YES (drop-rated)	NO	NO	NO	Partial
Japan/UK Legal	YES	NO	YES	YES	YES
Adjustable	3 Settings	NO	N/A	NO	NO
Noise	50-70 dB	80-90 dB	0 dB	80-90 dB	93-99 dB
Price	$399-449	$390	$189-439	$460-630	$130-220

Feature

ReCOIL Pro

CoolFire ($390)

SIRT ($189-439)

Laser Ammo ($460+)

Airsoft GBB

Recoil

60-100% Adjustable

~50%

~30-40%

~5-15%

Standalone

YES

NO (needs real gun)

YES

Reload Drills

YES (drop-rated)

Partial

Japan/UK Legal

YES

Adjustable

3 Settings

N/A

Noise

50-70 dB

80-90 dB

0 dB

80-90 dB

93-99 dB

Price

$399-449

$390

$189-439

$460-630

$130-220

Why G&G Armament

You invented pneumatic blowback 40 years ago.
ReCOIL Pro is the professional evolution of that technology.

ISO 9001 certified factory in Taiwan.
Injection molding + gas valve expertise already in-house.

101 Tech USA already serves LE/military distributors.
Global dealer network across 50+ countries.

This moves G&G from airsoft recreation into a $2.67B professional training market.

Joint Venture Structure

Lumina Consulting Provides

Intellectual property (3 patent families)
Product design + CAD files
Japan market access + LE sales channel
Regulatory navigation (Japan / US)

G&G Armament Provides

Manufacturing (Taiwan factory, ISO 9001)
Tooling investment (recouped from production)
Quality control + testing
Global distribution via 101 Tech + dealers

Revenue Split: 55% Lumina / 45% G&G (net profit) • IP: Lumina retains patents • G&G: Exclusive manufacturing license

Intellectual Property

Protected

Patent Family 1

Core Gas Recoil System
Progressive valve, internal mass, adjustable regulator, sound suppression

Patent Family 2

Training Magazine System
Shot counter, drop-rated, slide lock engagement

Patent Family 3

Smart Training Ecosystem
BLE analytics, companion app, LE fleet management

3 provisional patent applications in preparation with patent counsel
Mutual NDA prepared for execution today
PCT + design patent within 12 months (shared cost under JV)

Chris Yamate

Managing Member, Lumina Consulting LLC

FFL dealer — firearms industry professional
Dual US-Japan presence with LE market access
Multi-industry business development

chris@lumiaconsultllc.com

(626) 524-3444

5401 Tenderfoot Dr, Fontana, CA 92336

Advisory: Patent Attorney (engaged) • Japan Legal Counsel (銃刀法)

"We designed it. You build it.
Together we own this market."
